# Class 1: Design Tools ## TOOLS [Spatial Narrative](https://firebasestorage.googleapis.com/v0/b/gitbook-28427.appspot.com/o/assets%2F-LiPPFFn8713gkOyphHP%2F-LnMxBwSuJSAO1mgf5IA%2F-LnN2zG18WqqvmtTfH5z%2FScreen%20Shot%202019-08-28%20at%2013.49.58.png?alt=media\&token=1379d3b5-3734-4766-af06-a2cf477b72b2)\ [Action Spaces

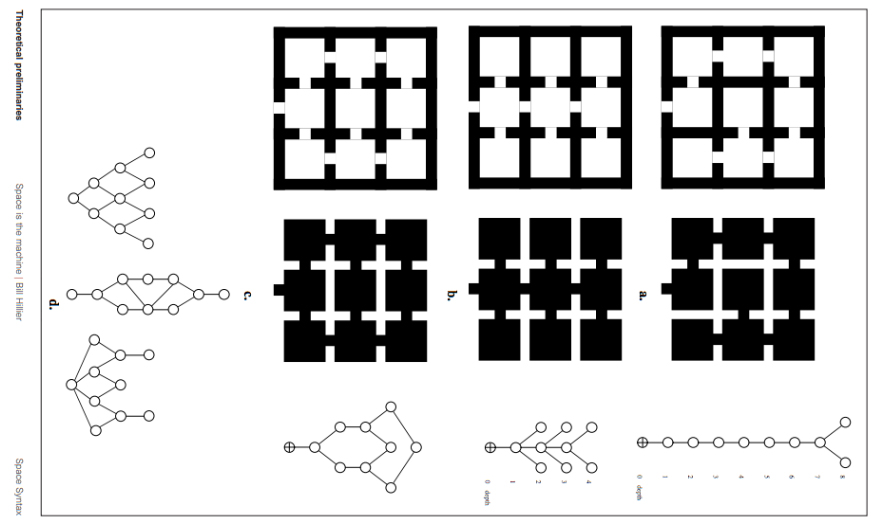

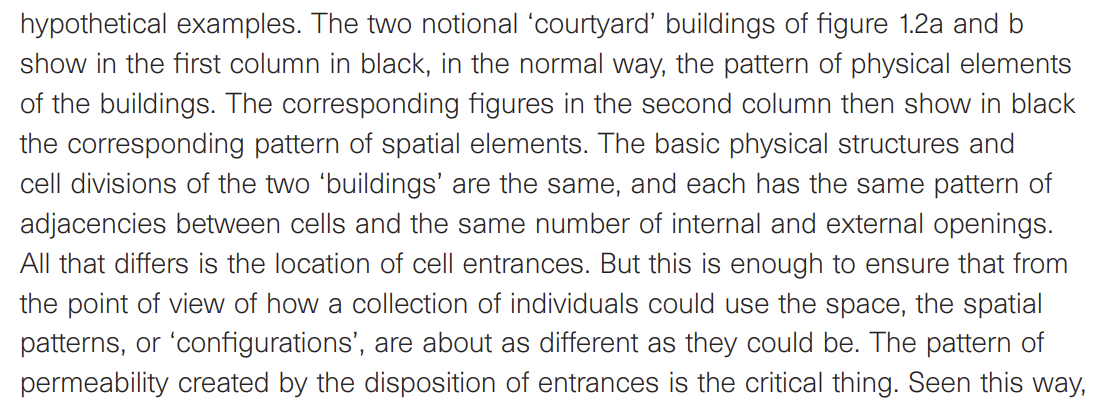

](https://blobscdn.gitbook.com/v0/b/gitbook-28427.appspot.com/o/assets%2F-LiPPFFn8713gkOyphHP%2F-Ln3VsxEbFCuRm6UZV91%2F-Ln3Xcgy4HKzaCmxheD3%2Fzones.jpg?alt=media\&token=462dd065-a13a-445a-bc8e-bb1e494b5dcf)[Proxemics](https://blobscdn.gitbook.com/v0/b/gitbook-28427.appspot.com/o/assets%2F-LiPPFFn8713gkOyphHP%2F-Ln2Pz4M3ljQvZuixhWI%2F-Ln2T5AOqWWhn59PTswp%2Fproxemics.jpg?alt=media\&token=75b086f9-52c0-4746-9e8f-e7b103fa592f) ## I. Look for Spatial Narratives #### Define settings * *Who* is my user group? Who are my stakeholders? * *Why* does my client want to have a VR/AR/MR experience? What the proposed purpose of the product? And, do we agree? * *When* will the product be used? What does this moment look like? Is it a casual moment? Does the moment occur repetitiously? * *Where* will the product be used? What kind of environment? What kind of feel does this environment have? Who are present? And who are not? * *How* is the product used? Does it need support? Is that available? * *What* are we going to make that is contributory to the clients needs and society as well? #### Formation Spatial Narrative \- **Integration**: How are *spatial* *territories* defined and integrated?\ \- **Flow:** What *obstacles* and *openings* are placed?\ \- **Choice:** What *choice* do users have? ### A. SPACE \ source: [What architecture adds to building](http://spaceisthemachine.com/wp-content/uploads/2015/03/SITM_Chapter-1_What-architecture-adds-to-building.pdf) ### B. NARRATIVE ![narrative techniques](https://1763729276-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LiPPFFn8713gkOyphHP%2F-Ln2Pz4M3ljQvZuixhWI%2F-Ln2R3Pn-kWvlJgGbbLM%2Fnarrativetechniques.jpg?alt=media\&token=c107a6cf-30f5-43db-a81b-4c92e66a559a) *further reading:* \ *-* [Narrative Theory](https://immersive-design.gitbook.io/immersive-design/-LVZotDI37V2-xJeHLYj/related-materials/concept-and-identity-deep-learning-narrative-theory)\ \- [Periodic Table of Storytelling](http://jamesharris.design/periodic/) ## II. Spatial Planning [Space planning ](https://www.firstinarchitecture.co.uk/space-planning-basics/) ![](https://1763729276-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LiPPFFn8713gkOyphHP%2F-M0sCr-F_kO1jYWnMNP1%2F-M0sMFCHGteIqMGAZ3uu%2Fbubble%20diagram.jpeg?alt=media\&token=329b7204-3fec-4061-9dbe-92ef108a0655) ![](https://1763729276-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LiPPFFn8713gkOyphHP%2F-Lp83lfH1ISu0MwGOXyE%2F-Lp85C5q9NfpCmA09zNW%2FIMG_6561.JPG?alt=media\&token=8e2a3fb5-7c87-40e0-934d-bd5f069a499a) ![](https://1763729276-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LiPPFFn8713gkOyphHP%2F-Lp83lfH1ISu0MwGOXyE%2F-Lp85FWvA0gHTjhxdD2d%2FIMG_6582.JPG?alt=media\&token=1ee0d088-ab17-4a79-9cd1-7c684a780938) ![intimate - personal - social - public](https://1763729276-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LiPPFFn8713gkOyphHP%2F-LmybyZPDpgc-zrzltON%2F-LmyiDQ-T4SuGKhzXK2x%2FIMG_6765.JPG?alt=media\&token=02e13bee-9e3f-4b96-ab88-215388ffeddf) ![heatmap audio intensity](https://1763729276-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LiPPFFn8713gkOyphHP%2F-M0sCr-F_kO1jYWnMNP1%2F-M0sMP0NMY6h6g5VguYa%2F1_snOHylRsXsyybVicjP8X8w.png?alt=media\&token=49873f54-ec47-4625-a3fd-e56159126f6d) ![](https://1763729276-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LiPPFFn8713gkOyphHP%2F-M0sCr-F_kO1jYWnMNP1%2F-M0sMhJsJtjtJeJ4leSt%2Faudio%20mapping%20%26%20storytelling.png?alt=media\&token=d5bfef31-77d4-4626-91c5-cb73bc95bf97) ## III. Proxemics ![Define proxemics](https://1763729276-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LiPPFFn8713gkOyphHP%2F-Ln2Pz4M3ljQvZuixhWI%2F-Ln2T5AOqWWhn59PTswp%2Fproxemics.jpg?alt=media\&token=75b086f9-52c0-4746-9e8f-e7b103fa592f) {% embed url="" %} Video: [Character Building through movement](https://www.youtube.com/watch?v=1RRc4tq2kpE) ## IV. Action Spaces ![scene](https://1763729276-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LiPPFFn8713gkOyphHP%2F-LmybyZPDpgc-zrzltON%2F-LmyijFAM52bVNcBkBJz%2FIMG_6907.JPG?alt=media\&token=8d3d0ee0-981b-41bc-a9a1-6d5e3e91b333) ![1st - 2nd - 3rd action spaces](https://1763729276-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LiPPFFn8713gkOyphHP%2F-Ln3VsxEbFCuRm6UZV91%2F-Ln3Xcgy4HKzaCmxheD3%2Fzones.jpg?alt=media\&token=462dd065-a13a-445a-bc8e-bb1e494b5dcf) ![define interactive elements & use cues ](https://1763729276-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LiPPFFn8713gkOyphHP%2F-Ln7nvWvWXn2h-lvJHyv%2F-Ln7oIfV3LQzQ15sk_ok%2Fpov2.jpg?alt=media\&token=8f81fe98-8558-48bb-9a79-4b6e583e759f) ## Additional ### Storytelling basics #### Define settings * *Who* is my user group? Who are my stakeholders? * *Why* does my client want to have a VR/AR/MR experience? What the proposed purpose of the product? And, do we agree? * *When* will the product be used? What does this moment look like? Is it a casual moment? Does the moment occur repetitiously? * *Where* will the product be used? What kind of environment? What kind of feel does this environment have? Who are present? And who are not? * *How* is the product used? Does it need support? Is that available? * *What* are we going to make that is contributory to the clients needs and society as well? {% embed url="" %} #### How to Start Telling Stories * Start with your message and goals (who, what, where, when, how, why) * Know special needs for special target groups * [Define the type of experience](https://www.researchgate.net/profile/Luis_Encarnacao2/publication/257921847/figure/tbl1/AS:392556530683905@1470604178262/Preliminary-Serious-Games-taxonomy-Sawyer-and-Smith-2008.png) * Create effective dialogues (emotional & expressive)

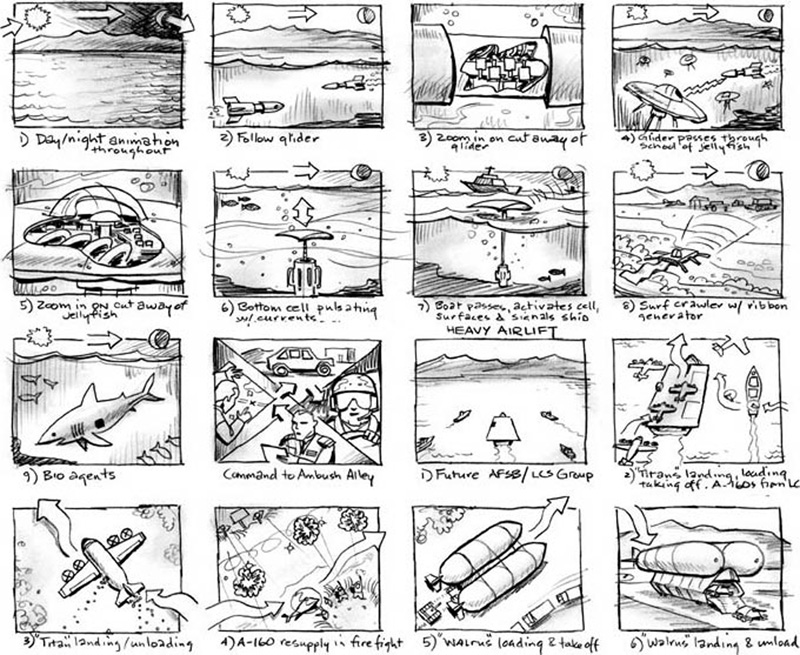

* **Syntax*****:*** [Periodic Table of Storytelling ](http://jamesharris.design/periodic/)-*sequence & order, cause & effect, problem & solution, compare & contrast* * **Semantics**: Plot - *situation, empathy, intentions, character, dialogue, conflict, resolution, call-to-action* * **Pragmatics**: Translate the plot to 360/VR - *presence, point-of-view, 1st person, 3rd person* #### Building Narrative Structures: weaving the braid ![Interactive Narrative Structures](https://weixuanzhaosss.files.wordpress.com/2010/09/e59bbee78987-161.png) [Marie – Laure Ryan](https://archive.org/details/NarrativeAsVirtualReality2MarieLaureRyan/page/n1) lists 9 possible interactive narrative structures (see above): 1. The Complete graph structure, 2. The network structure, 3. The Tree structure, 4. The Vector with Side Branches, 5. The Maze structure, 6. The Directed Network, or Flow Chat, 7. The Hidden Story structure, 8. The Braided Plot, 9. Action Space, Epic Wandering and Story-World. #### Breaking Immersion: The Fourth Wall ![Henry](https://i0.wp.com/skarredghost.com/wp-content/uploads/2018/06/Henry_Go_1.jpg?ssl=1) Breaking the fourth wall was common in Elizabethan theatre, specifically in Shakespeare's works. There is an unparalleled connection between audience and story in VR when a storyteller knows how to manage the medium. An almost visceral reaction can be evoked in audiences when a Director knows how to leverage Virtual Reality to tell his/her story. When [**Henry**](https://www.youtube.com/watch?v=IUY2yI5F16U) looks directly at us - in context- in the well made VR film of the same name, there is no denying the feeling of ‘presence’ the audience feels when viewing Henry in VR. #### Storyboarding: integrate SPACE, TIME and STORY #### ![](https://1763729276-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LiPPFFn8713gkOyphHP%2F-LncicASYpHLv5HyEjWK%2F-Lnciv5KzY7qX3KCQW-Y%2FStoryboard-tool.jpg?alt=media\&token=89ecf7e5-0f92-4c7a-9261-18ab8db25345) #### **Make a journey map and define touchpoints** ![Define the journey and the touchpoints](https://1763729276-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LiPPFFn8713gkOyphHP%2F-Ln2TKGlNpXc79VbebGm%2F-Ln2TMKLjjMee-n_zAOU%2Ftouchpoints.jpg?alt=media\&token=4265ead5-8efd-4da3-b7ca-7ffc02f18b26) further reading:\ [beginner's guide to user journey mapping](https://www.appcues.com/blog/user-journey-map) --- # Agent Instructions: Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question. Perform an HTTP GET request on the current page URL with the `ask` query parameter: ``` GET https://annemarleen.gitbook.io/immersive-design/class-0-2/class-1.md?ask= ``` The question should be specific, self-contained, and written in natural language. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
